Trains*MTH 50-1001 DCS Remote Control and DCS TIU Set LN/Box – Model Train Junction: Quality Parts and Art Supplies

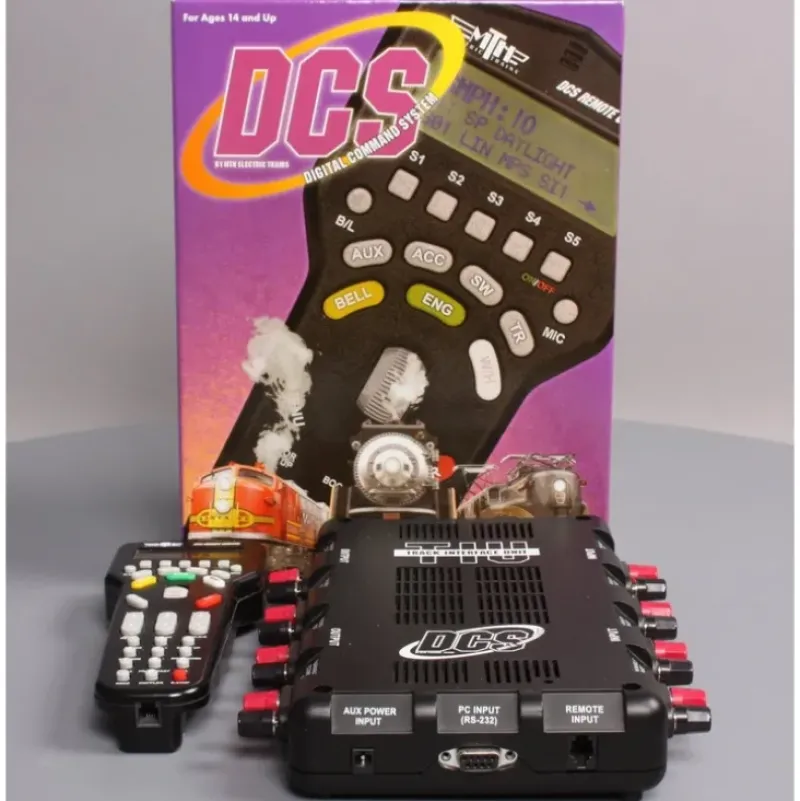

MTH 50-1001 DCS Remote Control Set – the current USB Version. DCS remote control set. Includes DCS Remote and DCS TIU. DCS is a system for controlling your entire layout multiple sound-equipped engines, switches, and accessories from one or more wireless handheld controllers. DCS is compatible with all M.T.H. Proto-Sound 2.0- or 3.0- equipped locomotives. In O gauge, it is also compatible with locomotives equipped with Lionel TMCC and Legacy, as well as conventional AC-powered engines.

The wireless remote handheld allows any operator to access Proto-Sound 2.0 and 3.0, operate multiple units, play vivid engine and station sounds, program layout operations, access switch and accessory control, program remote uncoupling, synchronized puff and chuff, and lighting, as well as a bevy of speed and throttle control options. This set also comes equipped with a TIU or track interface unit. This unit has an assortment of input features allowing the operator to link up to two AC or DC transformers, add additional AC transformers, program new software features, serial interface (RS-232), AUX power, Proto-Cast audio, AIU input, and Proto-Dispatch. The TIU also comes equipped with 4 output channels, one set for constant-voltage DCS command power, and one for conventional DCS command power. Together, the wireless handheld remote and the track interface unit, offer operators simply the best way to run their model railroad.

Its key features are:
Wireless remote handheld:
MICROPHONE – Broadcast your voice from a locomotive with Proto-Dispatch
LCD DISPLAY
SOFTKEYS – Activatelocomotive features
MIC – Turns Proto-Dispatch on & off
TR – Track menu (Access various tracks / blocks on your layout,for conventional AC mode)
START UP – Plays engine startup sequence, activates sound, smoke, and lights
Programming Port – For attaching tether between remote and TIU for programming new software features
SW – Switch menu (turnout control)
CPLR-F/CPLR-R Fires front & rear couplers
THUMBWHEEL – Throttle & selection (scroll & press) tool DIR – Changes locomotive direction
W/H – Blows whistle/horn
DIR – Changes locomotive direction
DOPPLER – Activates
Proto-Doppler
and much more!

TIU-track interface unit:
Proto-Cast (Audio) Connect any audio source using optional mini-to-mini cable (50-1009) and broadcast through engine
OUTPUTS Two channels constantvoltage DCS command power (AC or DC) Two channels conventional (variable voltage) or DCS command power (AC only)
Proto-Dispatch (input for optional auxiliary microphone)
AIU Input
FIXED INPUTS up to two AC or DC transformers
VARIABLE INPUTS up to two additional AC transformers
Remote Input for programming new software features
Serial Interface (RS-232)
Aux Power Input.

This item has been graded per TCA standards C-8: Like New based on visual appearance. The original box is included. The instruction manual is included. Overall condition is Like New.

Condition: Like New (C-8)
Operational Status: Functional
Original Box: Yes (P-8)

Manufacturer: MTH
Model Number: 50-1001
Road Name: **** No Road Name

Scale/Era: O Modern
Model Type: Control & Electrical

The Trainz SKU for this item is 5783326.

Trainz Product Id: 11658067
