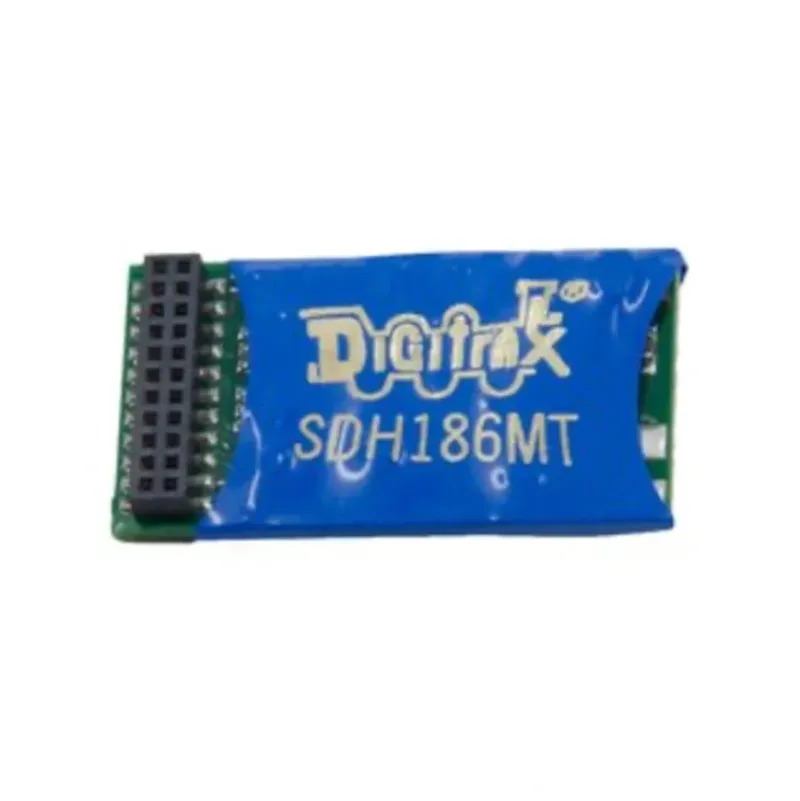

SDH186MT SoundFX

With programableGenericSteam or a Generic GP38 Diesel Sounds

• Mobile Decoder with 8-Bit SoundFX
• 21MTC interface with Configurable Logic Level or 12v F3-6 function outputs
• 2 Selectable Steam & Diesel Sound Schemes
• 1.0 Amp/2 Amps Peak
• 8 FX3 Functions, 200ma output
• Series 6 Decoder Features
• Works with PX112-2 Power Xtender
• Speaker sold separately
• 1.15x.64x.21
  29.28mm x 16.26mm x 5.34mm

Features:

• Digitrax SoundFX Sound System

  • Your locomotives will sound in scale like the real thing with SoundFX Customizable 8 Bit Sound
    Works with SoundFX 8 Bit sound files
    3 Simultaneous Voices
    Downloadable Sound with Digitrax PR3 and SoundLoader 2.0 software 4 Megabit Onboard Sound Memory
    1 Watt Sound Output
    Cam input-synchronized Steam-chuff option for Steam locos
    Scaleable Speed Stabilization(BEMF) optimized for sound operation
• Configurable Logic Level or 12v F3-6 function outputs.

• SoundFX does not require an external rate sensor to vary workload.
• Smart Power Management-no more booster or programmer shutdowns!
• Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
• Compatible with Locomotives using the 21MTC Interface
• Series 6 Decoder Features.
• Works with PX112-2 Power Extender
• Digitrax FX3 Functions-Control lights and functions for prototypical lighting effects and on/off control.
• Configurable FX3 Pulse Function available on all function outputs.
• Digitrax LocoMotion System Lets your trains run like the real thing!
• Basic, Advanced & UniVersal Consisting.
• SuperSonic motor drive for silent operation.
• Direct mode programming.
• Decoder Reset CV with or without speed table reset.
• Transponder Equipped ready for transponding on your Layout.
• Motor Isolation Protection helps prevent damage to your decoder.
• DCC Compatible.
• FCC Part 15, Class B RFI compliant.
• Digitrax No Worries Warranty.

Here are some Helpful links on the SDH186MT

Specification Sheet

Instruction Sheet
